RX series of application type of the pedestrian traffic controller is a design for the pedestrian priority passing by traffic signal controller, for near the school、transportation canalization island、fewer pedestrians crossing and on the main pedestrian crossings road, to reduce the waiting time to cross the road, reflect the people-oriented concept of traffic and elaborate design.

Advantages:

●Pedestrians request the control

●Manual control

●Yellow flashing control

●Appearance elegant is easy to install

●Multi-time control

●Turn off the light control

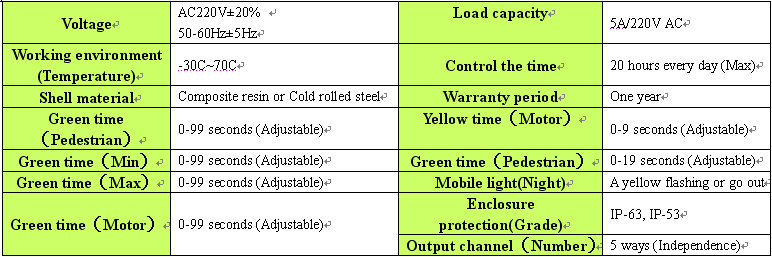

Technical parameters：

Functions：

Pedestrian’s trigger signaler is a kind of special for the priority of traffic controller, through the press of a button signaler to cross the street, according to set the parameters automatically assigned time to convertible preferred the state of traffic lights for pedestrians.

Features:

◆When the pedestrian green and minimum green light set not to 0 seconds, the maximum green light set to 0 seconds, only when the pedestrian presses the button, the signaler switch to the pedestrian green state;

◆When the minimum green light set to 0 seconds, the pedestrian green light set not to 0 seconds,the signaler will turn into yellow flashing state(It is the warning role mainly used for night);

◆The signaler can be set up to 20 times a day, users can set each time according to the actual needs for a variety of ways;

◆The user can manually control motor green light or pedestrians’ green light at any time, the state of manual, pedestrian button doesn't work;

◆When the signaler detected a green light, it will falling to the state of yellow flash light;

◆When the minimum green light and the pedestrian green light set to 0 seconds at the same time, the signaler will into a state of off lights. The state of off lights, pedestrian button doesn't work;

◆With domestic all meet the national standards of traffic controller compatible.

Examples of pictures:：
